Lighting and Distribution Transformer

Dry Type Lighting and Distribution Transformer

INDUSREE make dry type lighting & distribution transformers are manufactured using VPI (Vacuum Pressure Impregnation) technology, resulting high quality & reliability product as well as the dielectric strength. Vacuum processed dry type transformers are safe & environment friendly equipments.

  • Available Capacity

    10 KVA to 500 KVA, VPI / Resin cast type HT & LT /Single phase / Three phase, 50Hz / 60 Hz.

  • Application

    Steel plant , Power distribution companies , High rise buildings ,OIL & GAS PLANT plant, Marine, Hospitals & all Hazardious & FIRE PRONE AREAS.

  • Quality Features

    ⦿ High quality non-aging, cold rolled grain oriented high permeability silicon steel with thickness as low as 0.23 mm are used to Keep Losses as per BIS .
    ⦿ Precision cut to close tolerance using modern equipment to eliminate burrs resulting minimum loss.
    ⦿ Mitre cut, stepped core construction for optimum efficiency.
    ⦿ Winding of class A insulated according to customers requirements.
    ⦿ For insulation Nomex paper which is under 220 degree C limit.
    ⦿ Fibre glass materials are used for cylinders, spacers, ducts and dog bone.
    ⦿ Mechanically robust to absorb unforcing forces during short circuit condition.
    ⦿ Enclosure is made from sheet steel with lifting arrangement on sides.

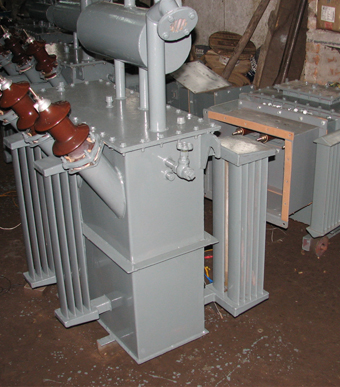

Oil Cooled Distribution Transformer

INDUSREE make oil cooled type distribution transformers 1ph. Or 3ph,are manufactured to effectively improve the quality & reliability of electrical distribution system. Oil cooled transformers (up to 11 KV) are tested as per IS 2026 /1180 for Indian standard and matching other international standards.

  • Available Capacity

    25KVA to 500KVA HT & LT/ Single phase /Three phase,50Hz/60 Hz.

  • Quality Features

    ⦿ High quality non –aging, cold rolled grain oriented high permeability silicon steel with thickness as low as 0.27mm are used.
    ⦿ Precision cut to close tolerance using modern equipment to eliminate burrs resulting minimum loss.
    ⦿ Mitre cut, stepped core construction for better efficiency.
    ⦿ Windings are class A.
    ⦿ For insulation high quality craft papers are used.
    ⦿ Compressed paper based material are used for cylinders, spacers , ducts.
    ⦿ Mechanically robust to withstand unforcing forces during short circuit condition.
    ⦿ Enclosure is made from sheet steel with a lifting arrangement on both sides.
